Ruiz Duplex


Elevation

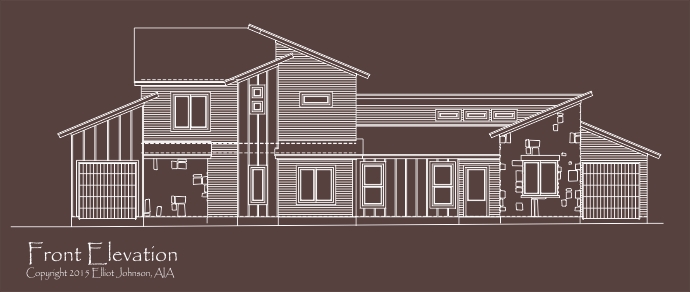

Front Elevation copyright Elliot Johnson, AIA


First Floor

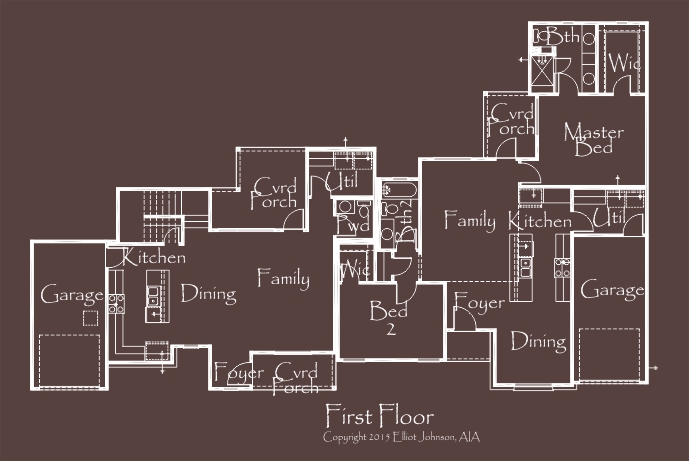

First Floor Plan copyright Elliot Johnson, AIA
Unit A
First Floor     - 728 s.f.
Second Floor - 714 s.f.
Total            - 1442 s.f.

Unit B
First Floor     - 1183 s.f.
Total            - 1183 s.f.

This duplex, is the first of four for this lot in East Austin.

The City of Austin gave the developer a hard time about subdividing the lot, after about 2 1/2 years they finally approved the three other lots.
Second Floor

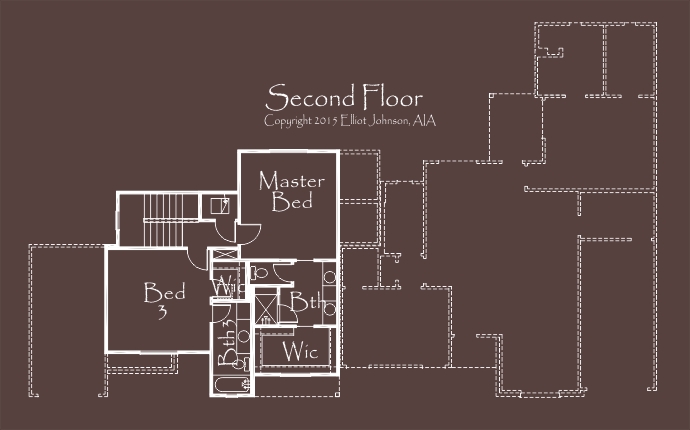

Second Floor Plan copyright Elliot Johnson, AIA
Elevation

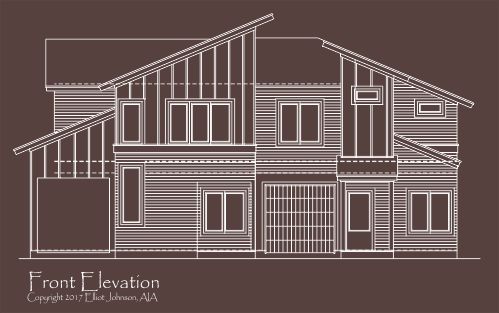

Lot 2 Front Elevation copyright Elliot Johnson, AIA


First Floor

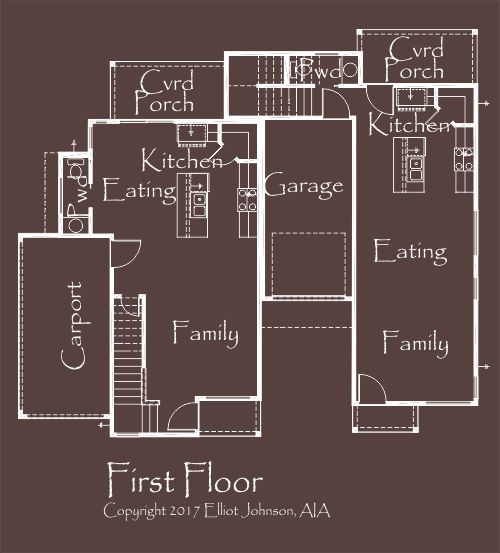

Lot 2 First Floor Plan copyright Elliot Johnson, AIA
Lot 2 Unit A
First Floor     - 612 s.f.
Second Floor - 728 s.f.
Total            - 1340 s.f.

Lot 2 Unit B
First Floor     - 595 s.f.
Second Floor - 863 s.f.
Total            - 1458 s.f.



Second Floor

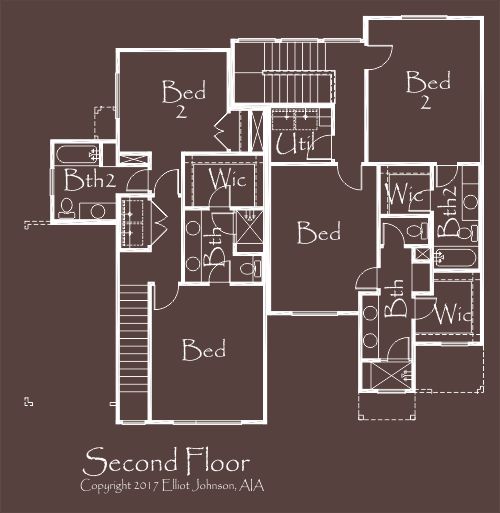

Lot 2 Second Floor Plan copyright Elliot Johnson, AIA
Elevation

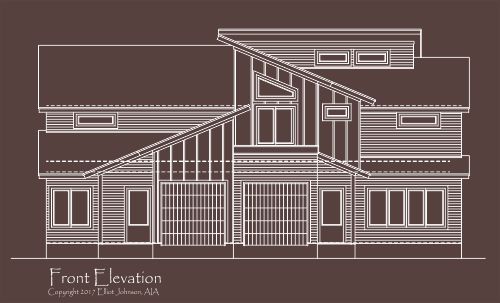

Lot 3 Front Elevation copyright Elliot Johnson, AIA


First Floor

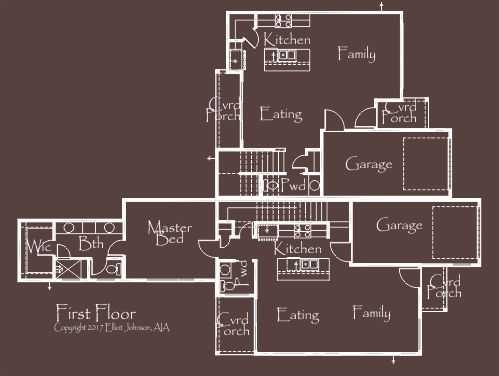

Lot 3 First Floor Plan copyright Elliot Johnson, AIA
Lot 3 Unit A
First Floor     - 947 s.f.
Second Floor - 607 s.f.
Total            - 1554 s.f.

Lot 3 Unit B
First Floor     - 632 s.f.
Second Floor - 768 s.f.
Total            - 1400 s.f.



Second Floor

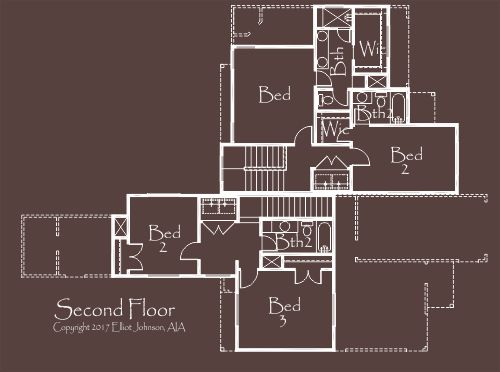

Lot 3 Second Floor Plan copyright Elliot Johnson, AIA
Elevation

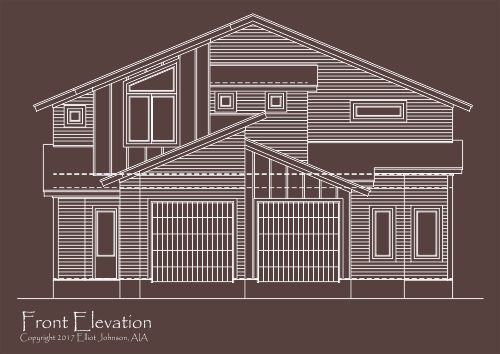

Lot 4 Front Elevation copyright Elliot Johnson, AIA


First Floor

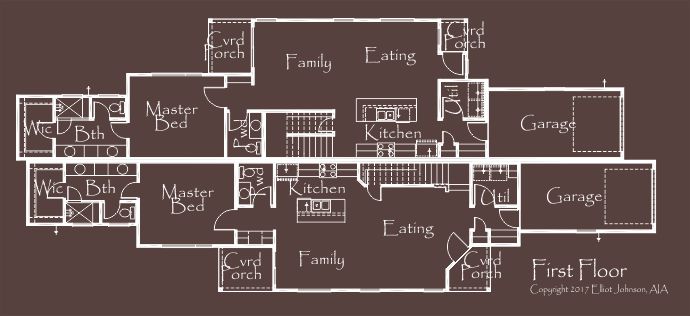

Lot 4 First Floor Plan copyright Elliot Johnson, AIA
Lot 4 Unit A
First Floor     - 1050 s.f.
Second Floor - 815 s.f.
Total            - 1865 s.f.

Lot 4 Unit B
First Floor     - 1066 s.f.
Second Floor - 836 s.f.
Total            - 1902 s.f.



Second Floor

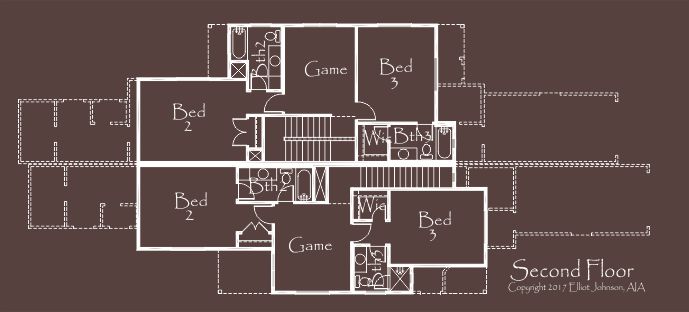

Lot 4 Second Floor Plan copyright Elliot Johnson, AIA
